Miejsce pochodzenia:
CHINY
Nazwa handlowa:
PASSION
Orzecznictwo:
FDA, RoHS, REACH
Numer modelu:
301

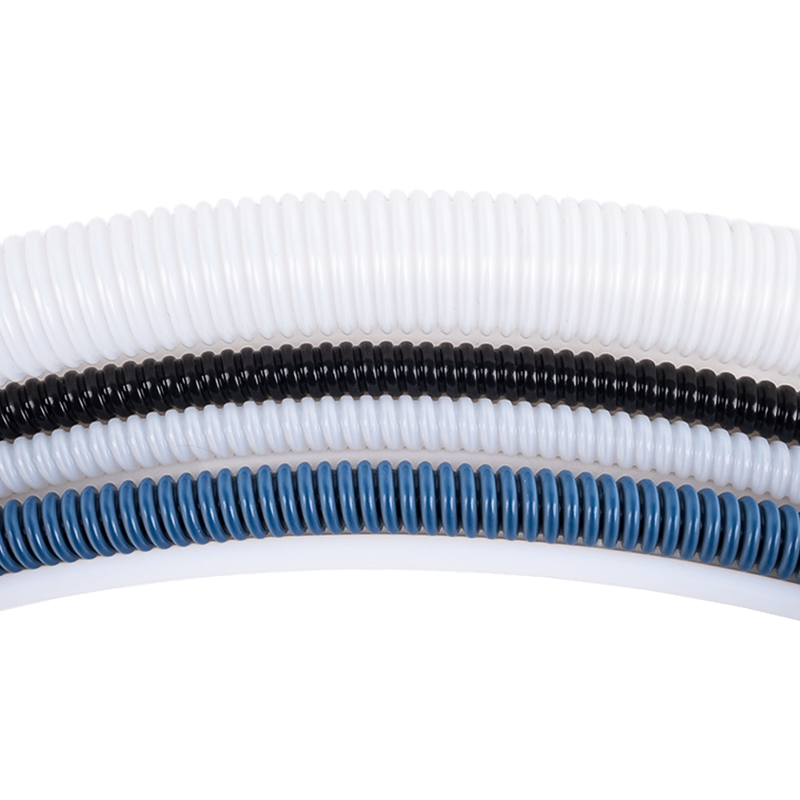

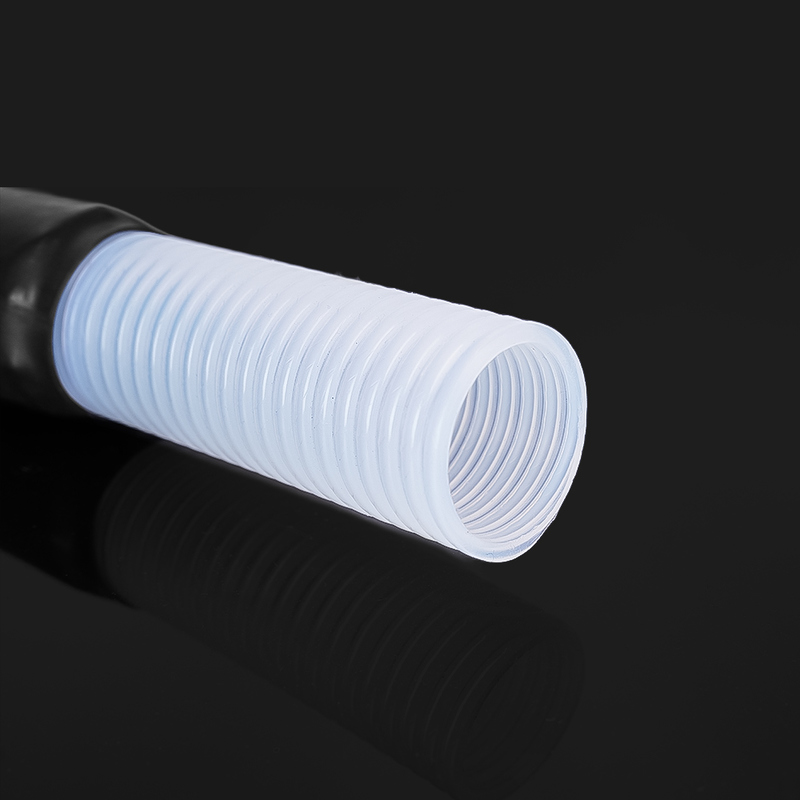

Our Smooth Bore Convoluted PTFE Hose is engineered for demanding applications. It features a non-stick, chemically inert PTFE core with a seamless inner wall to ensure uncontaminated flow and easy cleaning. The exterior convolution provides superior flexibility for easy routing in tight spaces. Ideal for transferring aggressive chemicals, high-purity fluids, and high-temperature media across various industries.
Tube: PTFE
Reinforcement: SS304/316 wire
Temperature: -65C to 260C
Transfer Medium: High temperature oil/water, steam, strong acid, strong alkali, petroleum, diesel, gasoline, chemical, food, medicine, glue, etc.
| ID. (inch) | ID.(mm) | OD (mm) | Thickness (mm) | WP (bar) | BP (bar) | Min. Bend Radius (mm) |
| 3/8" | 10 | 13.5 | 1.4 | 90 | 360 | 25 |
| 1/2" | 13 | 16.6 | 1.6 | 83 | 333 | 28 |
| 5/8" | 16 | 20.5 | 1.8 | 75 | 300 | 50 |
| 3/4" | 19 | 23.7 | 2 | 74 | 296 | 63 |
| 1" | 25.4 | 30.8 | 2 | 59 | 236 | 90 |
| 1-1/4" | 32 | 37 | 2 | 38 | 150 | 150 |
Application:
Smooth Bore Convoluted PTFE Hose – Built for Performance:
Ultra-Clean Flow: Smooth bore prevents clogging and ensures contaminant-free transfer.
Exceptional Flexibility: Convoluted design allows for tight bends without kinking.
Superior Chemical Resistance: Handles aggressive acids, solvents, and high-purity fluids.
High-Temperature Capability: Suitable for a wide range of demanding environments.
Ideal for: Chemical Processing, Pharmaceuticals, Food & Beverage, and Semiconductors.
